5-Axis Precision CNC Milling & Turning
Complex geometries for jet turbine exhaust manifolds, calibration assemblies, and flight hardware.
DWG-001 · REV C · UNCLASSIFIED
AS9100D | ITAR REGISTERED | IN-HOUSE CAD & METALLURGICAL PROCESSING
Aerospace Machining
& Specialized Metallurgy
±0.0001″ precision machining capabilities. BME Consultation adds DFM and engineering to ensure parts are buildable — not just quoted.
Submit Part Files for QuoteHear back within 48 hrs
- Engineering Expertise since 1982
- QMS AS9100D Aerospace quality system
- ITAR ITAR Registered Defense technical data
- CAD In-House CAD DFM & engineering, not just CAD
- MET Metallurgical Processing Heat treat · braze · weld
01 — END-TO-END
Full-Spectrum Manufacturing & Special Processes
Complex parts from concept to finished assembly. One shop. Full process control. DFM catch before metal cuts.
Precision Wire EDM
Intricate cuts, tight radii, and keyways in hardened exotic alloys to ±0.0001″.
In-House CAD Design & Engineering
CAD modeling, reverse engineering, and Design for Manufacturability (DFM). We flag bad tolerances, weak specs, and parts that could potentially be problematic in the manufacturing process.
Thermal & Joining Operations
In-house heat treating, specialized welding, vacuum/torch brazing, and precision hand fitting.
02 — BME CONSULTING
Designed for Manufacturing
Most shops only cut what you send. We offer direct engineering feedback and communication for improvements to the manufacturing process.
Most machining and manufacturing companies can only build your part assuming it is accurately designed and presented with correct tolerances, specs, viable materials, etc. And we can too.
However, BME Consulting brings both a Designed for Manufacturing (DFM) and engineering perspective to help identify potential pitfalls, as well as solutions for your project. Often the Design Engineering team and the Manufacturing team work independently and are faced with part designs that lack manufacturability, leading to delays and even product stalls. Let BME help you avoid potential costly delays and mistakes by handling the manufactuing of your Parts.
03 — ALLOY CONTROL
Metallurgy & Materials Matrix
Certified stock. Traceable lots. Material certifications and DFARS when required. Machined, treated, and joined in-house.
| Material Category | Specific Alloys Machined | Typical Applications |
|---|---|---|
| High-Temp Superalloys | Inconel 625, Inconel 718, Hastelloy X | Turbine Exhaust Manifolds, Hot-Section Components |
| High-Strength Alloys | Maraging 300, Nitronic 60, A286 | Flight Control Hardware, Calibration Equipment, High-Wear Fittings |
| Stainless Steels | 304, 316, 316L | Corrosion-Resistant Housings, Manifold Plumbing |
| Carbon & Tool Steels | 1008, 1018, A2, D2, Tool Steels | Tooling, Fixturing, Structural Parts |
| Aluminum Alloys | 6061-T6, 7075-T6, 2024 | Lightweight Aerospace Enclosures, Brackets |

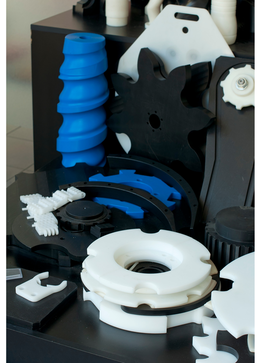

| Engineering Plastics | POM-H Delrin | Wear Pads, Bushings, Insulators, Precision Fixtures |
04 — REQUEST FOR QUOTE
Submit Part Files for Quote
Prints go to engineering first. DFM review catches bad tolerances before the machine. ITAR-controlled data accepted from U.S. persons.
Please call us to discuss your project.
602.437.498405 — 3D ASSEMBLIES
Visualize Your Parts in 3D
Our experienced engineers design, draw, and make your ideas come to life in 3D. That precision gives us test fitment and design-choice feedback — so innovation is proven before production.
3D loads when in view
06 — PRESIDENT'S RECORD
Put Our Experience to Work
Since 1982, clients both big and small have come to us to design, fabricate and machine custom parts and equipment. With over 80 years of engineering experience, our experts are more than qualified to help with project challenges and find mechanical solutions. Our clients, including those that represent the Military, Aerospace, Semi-Conductor and Automotive industries, require a high level of certification and performance. Therefore, adherence to your quality assurance program is not an obstacle with BME. We are System (M1software) compliant to AS9100 quality standards. We provide Material Certifications and DFARS if necessary, to ensure your product is exactly what you are expecting.
Ron Ruiz

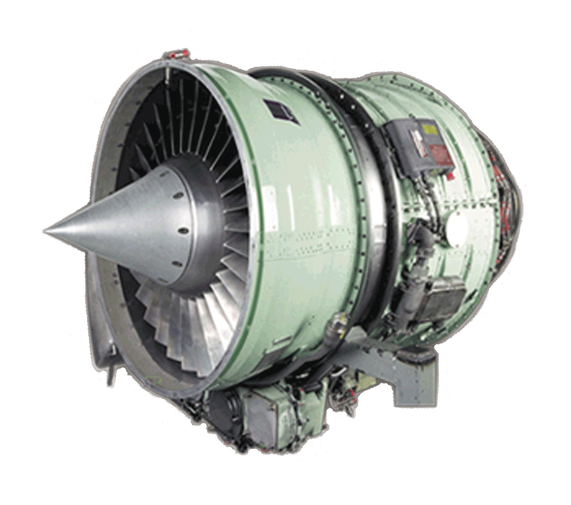

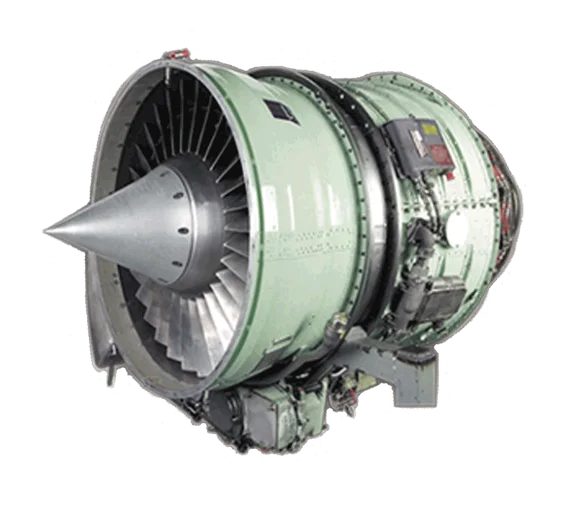

Our President / CEO has over 40 years experience in the Aerospace industry. An award-winning International Engineer recognized for Engineering excellence, Ron Ruiz spearheaded the Project Management team for the Design, Development, Certification and Production implementation of the TFE731 family of engines. ron.ruiz@bmeaz.com
